cbmimage: specific functions and data for D80 and D82 images More...

#include "cbmimage/internal.h"
#include "cbmimage/alloc.h"
#include "cbmimage/helper.h"
#include <assert.h>

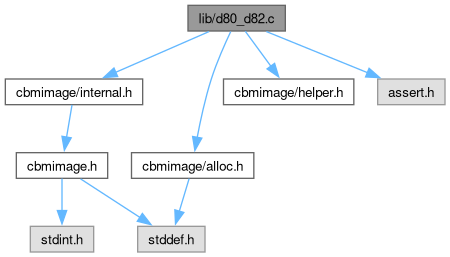

Include dependency graph for d80_d82.c:

Functions
static uint16_t	cbmimage_i_d80_d82_get_sectors_in_track (cbmimage_image_settings *settings, uint16_t track)

static int	cbmimage_i_d80_d82_ts_to_blockaddress (cbmimage_image_settings settings, cbmimage_blockaddress block)

static int	cbmimage_i_d80_d82_lba_to_blockaddress (cbmimage_image_settings settings, cbmimage_blockaddress block)

static void	cbmimage_i_d80_d82_calculate_track_lba_start_table (cbmimage_image_settings *settings)

static void	cbmimage_i_d80_d82_image_create (cbmimage_fileimage image, cbmimage_imagetype imagetype, unsigned char imagetype_name, uint8_t maxtracks)

void	cbmimage_i_d80_image_open (cbmimage_fileimage *image)

void	cbmimage_i_d82_image_open (cbmimage_fileimage *image)

Variables
static const uint8_t	sectors_in_track_d82 [154+1]

static const cbmimage_fileimage_functions	d80_d82_fileimage_functions

Detailed Description

cbmimage: specific functions and data for D80 and D82 images

Variable Documentation

const uint8_t sectors_in_track_d82[154+1]

static

The number of the sectors on a track in a D80 and D82 image

Remarks

The track number is used as index into this array. As the tracks are based by 1, the element "0" is left out and kept as zero. Additionally, the array length is one more than the number of tracks in the image.
This array is used both D80 and D82 images; for D80, only the first half (tracks 1 - 77) is used.
