A directory entry. More...
#include <cbmimage.h>

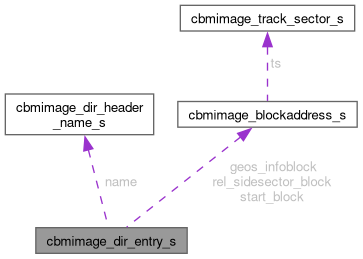

Public Attributes | |
| cbmimage_dir_header_name | name |
| the name of the image with some extra info | |
| cbmimage_dir_type | type |
| type of this directory entry (DEL, SRQ, PRG, USR, REL, ...) | |
| unsigned int | is_locked: 1 |
| unsigned int | is_closed: 1 |
| unsigned int | has_datetime: 1 |
| if set to 1, this file has valid year, month, day, hour and minute entries | |
| unsigned int | is_geos: 1 |
| if set to 1, this is a GEOS file | |
| unsigned int | geos_is_vlir: 1 |
| if is_geos and this is set to 1, this is a GEOS VLIR file | |
| unsigned int | is_valid: 1 |
| if the directory entry is valid, this is 1 | |
| cbmimage_blockaddress | start_block |
| cbmimage_blockaddress | rel_sidesector_block |
| uint16_t | rel_recordlength |
| if type is DIR_TYPE_REL, this is the record length of the REL file | |
| uint16_t | block_count |
| the count of occupied blocks on disk | |
| uint16_t | year |
| if has_datetime is 1, the year of the file creation or last modification. | |
| uint8_t | month |
| if has_datetime is 1, the month of the file creation or last modification. | |
| uint8_t | day |
| if has_datetime is 1, the day of the file creation or last modification. | |
| uint8_t | hour |
| if has_datetime is 1, the hour of the file creation or last modification. | |
| uint8_t | minute |
| if has_datetime is 1, the minute of the file creation or last modification. | |
| cbmimage_blockaddress | geos_infoblock |
| if is_geos is 1, this contains a pointer to the GEOS infoblock | |
| cbmimage_geos_filetype | geos_filetype |
| if is_geos is 1, this is the GEOS filtype | |
Detailed Description
A directory entry.
The functions that enumerate directory entrys all operate on this entry type.
see also: cbmimage_dir_get_first, cbmimage_dir_get_next, cbmimage_dir_get_close, cbmimage_dir_is_deleted
Member Data Documentation
◆ is_closed
| unsigned int cbmimage_dir_entry_s::is_closed |
if set to 1 (normal), this file is closed correctly. If set to 0, the file is not (yet?) closed. The CBM DOS shows such files with a "*" (i.e., "*PRG")
◆ is_locked
| unsigned int cbmimage_dir_entry_s::is_locked |
if set to 1, this file is locked. That is, it cannot be changed or deleted. The CBM DOS shows such files with a "<" (i.e., "PRG<")
◆ rel_sidesector_block
| cbmimage_blockaddress cbmimage_dir_entry_s::rel_sidesector_block |
if type is DIR_TYPE_REL, this points to the first sidesektor block on the disk. Note that in case of 1581 and other drives, this is a SUPER SIDE SECTOR BLOCK
◆ start_block
| cbmimage_blockaddress cbmimage_dir_entry_s::start_block |
the start of the file on the disk. Note that for GEOS VLIR files (is_geos_vlir is set to 1), this contains the record map, which itself points to the real starts of the streams
The documentation for this struct was generated from the following file:
- include/cbmimage.h
