cbmimage_i_d1m_d2m_d4m_image_settings_s Struct Reference

Image specific settings for CMD D1M, D2M and D4M images . More...

#include <internal.h>

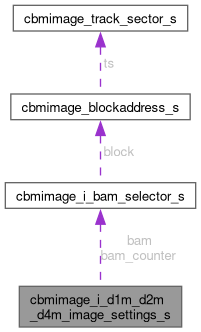

Collaboration diagram for cbmimage_i_d1m_d2m_d4m_image_settings_s:

Public Attributes
cbmimage_i_bam_selector	bam [2]
cbmimage_i_bam_counter_selector	bam_counter [2]

Detailed Description

Image specific settings for CMD D1M, D2M and D4M images .

this type contains data that is specific to the D1M, D2M or D4M images

Member Data Documentation

bam

cbmimage_i_bam_selector cbmimage_i_d1m_d2m_d4m_image_settings_s::bam[2]

the location of the BAM. At most two entries are needed (D71, D40 with 40 or 42 tracks)

bam_counter

cbmimage_i_bam_counter_selector cbmimage_i_d1m_d2m_d4m_image_settings_s::bam_counter[2]

the location of the BAM counter. At most two entries are needed (D71, D40 with 40 or 42 tracks)

---

The documentation for this struct was generated from the following file:

• include/cbmimage/internal.h
