cbmimage_i_d80_d82_image_settings_s Struct Reference

Image specific settings for D80 and D82 images . More...

#include <internal.h>

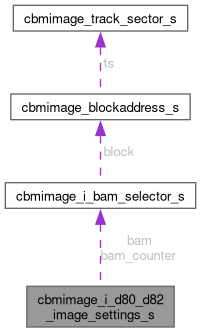

Collaboration diagram for cbmimage_i_d80_d82_image_settings_s:

Public Attributes
const uint8_t *	sectors_in_track
	number of sectors in a track
uint16_t	track_lba_start [1+154]
	the LBA of the start of each track
cbmimage_i_bam_selector	bam [4]
	the location of the BAM. At most two entries are needed (D71, D40 with 40 or 42 tracks)
cbmimage_i_bam_counter_selector	bam_counter [4]
	the location of the BAM counter. At most two entries are needed (D71, D40 with 40 or 42 tracks)

Detailed Description

Image specific settings for D80 and D82 images .

this type contains data that is specific to the D80 and D82 images (which are almost identical)

The main contents are sectors_in_track and track_lba_start. Because these images contain different number of sectors on a track, it is easier to handle it via these arrays instead of calculating it every time it is needed

---

The documentation for this struct was generated from the following file:

• include/cbmimage/internal.h
