Image specific settings for all types of images . More...
#include <internal.h>

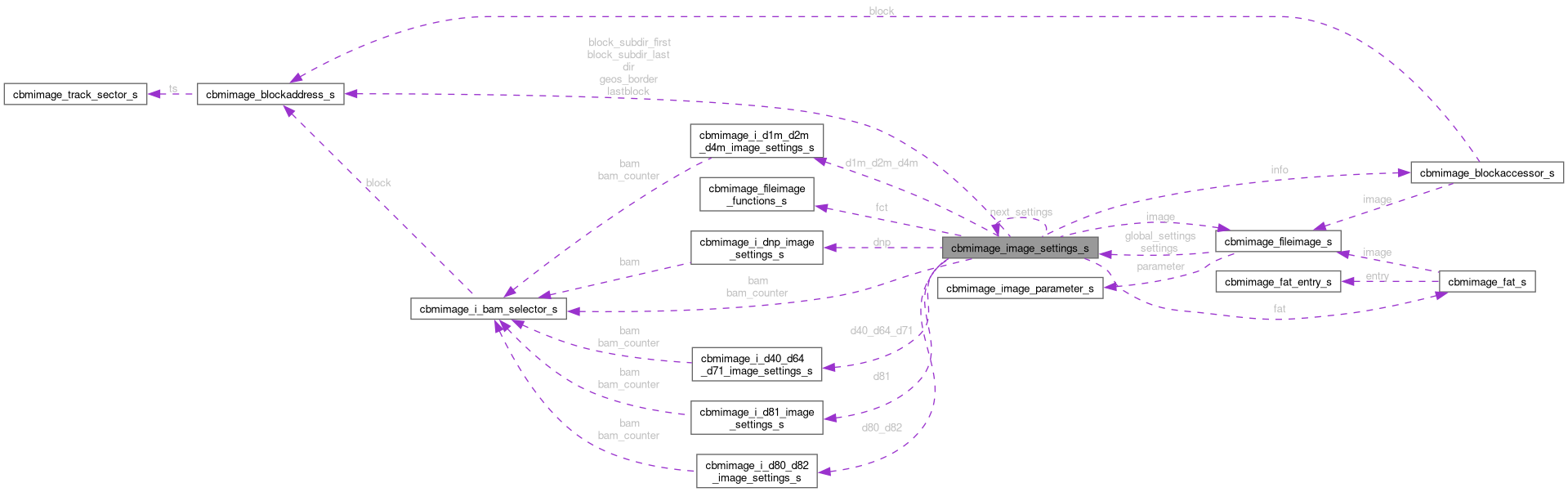

Public Attributes | ||
| cbmimage_fileimage_functions | fct | |
| functions for image type specific operations | ||
| cbmimage_image_settings * | next_settings | |
| back-pointer for nested images (directorys, partitions) | ||
| cbmimage_fileimage * | image | |
| pointer back to the cbmimage_fileimage that contains a pointer to here | ||
| cbmimage_imagetype | imagetype | |
| the file type of the image | ||
| const unsigned char * | imagetype_name | |
| the name (user readable text) for the file type of the image | ||
| cbmimage_blockaccessor * | info | |
| cbmimage_fat * | fat | |
| if there is a calculated FAT, this points to it. If there is none, it is NUL. | ||
| uint8_t | info_offset_diskname | |
| the offset of the diskname that is stored in the info block | ||
| cbmimage_blockaddress | dir | |
| address of the (first) directory block | ||
| uint8_t | maxtracks | |
| maximum number of tracks (e.g. 35 if track go from 1 to 35) | ||
| uint16_t | maxsectors | |
| uint16_t | bytes_in_block | |
| the number of bytes in a block | ||
| uint8_t | dir_tracks [2] | |
| cbmimage_blockaddress | lastblock | |
| address of the last block on this image | ||
| int | has_super_sidesector | |
| size_t | bam_count | |
| the number of bam and bam_counter entries | ||
| cbmimage_i_bam_selector * | bam | |
| the location of the BAM. | ||
| cbmimage_i_bam_counter_selector * | bam_counter | |
| the location of the BAM counter. | ||
| size_t | subdir_data_offset | |
| data offset for subdir | ||
| cbmimage_blockaddress | block_subdir_first | |
| in case of an active sub-dir / sub-partition, this marks the start block of that partition | ||
| cbmimage_blockaddress | block_subdir_last | |
| in case of an active sub-dir / sub-partition, this marks the last block of that partition | ||
| unsigned int | subdir_global_addressing: 1 | |
| flag if there is an active subdir with absolute addresses | ||
| unsigned int | subdir_relative_addressing: 1 | |
| flag if there is an active subdir with relative addresses | ||
| unsigned int | is_partition_table: 1 | |
| Define if the current "partition" is the partition table. | ||
| unsigned int | is_geos: 1 | |
| set if this is a GEOS disk | ||
| cbmimage_blockaddress | geos_border | |
| block of the GEOS border block. | ||
| union { | ||
| cbmimage_i_d40_d64_d71_image_settings d40_d64_d71 | ||
| image specific settnigs for D64, D71 and D40 files | ||
| cbmimage_i_d81_image_settings d81 | ||
| image specific settnigs for D81 files | ||
| cbmimage_i_d80_d82_image_settings d80_d82 | ||
| image specific settnigs for D80 and D82 files | ||
| cbmimage_i_d1m_d2m_d4m_image_settings d1m_d2m_d4m | ||
| image specific settnigs for D1M, D2M and D4M files | ||
| cbmimage_i_dnp_image_settings dnp | ||
| image specific settnigs for DNP (CMD native partition) files | ||
| }; | ||
| image specific settings | ||
Detailed Description
Image specific settings for all types of images .
this type contains data that is specific to each image type, but that is needed from all types.
This type is subject to change and not part of the API.
Member Data Documentation
◆ dir_tracks
| uint8_t cbmimage_image_settings_s::dir_tracks[2] |
the track(s) where the directory is located. If there is only 1 track, the other must be 0.
The tracks must be numerically sorted, filling the remaining entries with a 0.
◆ has_super_sidesector
| int cbmimage_image_settings_s::has_super_sidesector |
0 if side-sector blocks are normal side-sector blocks
1 if there is a super side-sector block instead (i.e. 1581)
◆ info
| cbmimage_blockaccessor* cbmimage_image_settings_s::info |
accessor for the info block.
On some images (e.g., D64, D71 and D40), this is identical to the BAM block.
On others, it is not.
◆ is_partition_table
| unsigned int cbmimage_image_settings_s::is_partition_table |
Define if the current "partition" is the partition table.
For partitions (CMD FD2000, FD4000), the partition table is handled as a directory. Thus, the directory processing functions must know if they handle the partition table (== this is set to 1) or not (== 0)
◆ maxsectors
| uint16_t cbmimage_image_settings_s::maxsectors |
maximum number of sectors (e.g. 21 if sectors go from 0 to 20). Note that the number of sectors in a specific track can be lower than this.
◆ subdir_data_offset
| size_t cbmimage_image_settings_s::subdir_data_offset |
data offset for subdir
For subdirs/partitions that are handled as part of an absolute section on the image (e.g., FD2000/FD4000 D64, D71 or D81 partitions), this offset is added in order to get the address of a block in the partition.
If there is no subdir or no subdir is active, this must be 0.
◆ subdir_global_addressing
| unsigned int cbmimage_image_settings_s::subdir_global_addressing |
flag if there is an active subdir with absolute addresses
If this is 1, then subdirs/partitions are processed with absolute addresses (1581 style). That is: If the subdir starts at 3/0, then in the subdir, this block is named 3/0 and the link to the next block is 3/1.
If no subdir/partition is active, then this must be 0.
◆ subdir_relative_addressing
| unsigned int cbmimage_image_settings_s::subdir_relative_addressing |
flag if there is an active subdir with relative addresses
If this is != 0, there is an active subdir/partition that is processed with relative addresses (CMD Fdx000 style). That is: If the subdir starts at 3/0, then in the subdir, this block is named 1/0 and the link to the next block is 1/1.
If no subdir/partition is active, this must be 0.
The documentation for this struct was generated from the following file:
- include/cbmimage/internal.h
