cbmimage: validate disk More...

#include "cbmimage/internal.h"
#include "cbmimage/alloc.h"
#include <assert.h>
#include <string.h>

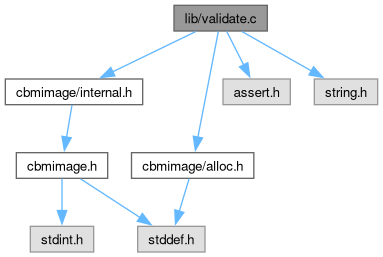

Include dependency graph for validate.c:

Enumerations
enum	{ SUPER_SIDESECTOR_OFFSET_LINK_TRACK = 0x00 , SUPER_SIDESECTOR_OFFSET_LINK_SECTOR = 0x01 , SUPER_SIDESECTOR_OFFSET_LINK_COUNT = 0x02 , SUPER_SIDESECTOR_OFFSET_GROUP0_TRACK = 0x03 , SUPER_SIDESECTOR_OFFSET_GROUP0_SECTOR = 0x04 }

enum	{ SUPER_SIDESECTOR_LINK_COUNT_FIXED = 0xFEu }

enum	{ SIDESECTOR_OFFSET_LINK_TRACK = 0x00 , SIDESECTOR_OFFSET_LINK_SECTOR = 0x01 , SIDESECTOR_OFFSET_LINK_COUNT = 0x02 , SIDESECTOR_OFFSET_RECORD_SIZE = 0x03 , SIDESECTOR_OFFSET_SS0_TRACK = 0x04 , SIDESECTOR_OFFSET_SS0_SECTOR = 0x05 , SIDESECTOR_OFFSET_CHAIN_TRACK = 0x10 , SIDESECTOR_OFFSET_CHAIN_SECTOR = 0x11 }

enum	{ SIDESECTOR_MAX_COUNT = 6 }

Functions
static int	cbmimage_i_mark_global_and_local (cbmimage_fileimage image, cbmimage_loop loop_detector, cbmimage_blockaddress block_start, cbmimage_blockaddress block_current, cbmimage_blockaddress block_target)

static int	cbmimage_i_validate_follow_chain (cbmimage_fileimage image, cbmimage_blockaddress block_start, size_t count_blocks)

int	cbmimage_i_validate_1581_partition (cbmimage_fileimage *image, cbmimage_blockaddress block_start, int count)

static int	cbmimage_i_bam_check_equality (cbmimage_fileimage *image)

static int	cbmimage_i_validate_super_sidesector_plausibility (cbmimage_chain *chain)

static int	cbmimage_i_validate_super_sidesector_end (cbmimage_chain *chain, uint8_t offset)

static int	cbmimage_i_validate_sidesector_plausibility (cbmimage_chain chain_sidesector, uint8_t first_sidesector, uint8_t count_sidesector, int recordlength)

static int	cbmimage_i_validate_sidesector_chain (cbmimage_chain chain_sidesector, cbmimage_chain chain_file)

static int	cbmimage_i_validate_rel_file (cbmimage_fileimage image, cbmimage_dir_entry dir_entry, size_t *count_blocks)

static int	cbmimage_i_validate_geos_file (cbmimage_fileimage image, cbmimage_dir_entry dir_entry, size_t *count_blocks)

int	cbmimage_i_validate_process_file (cbmimage_fileimage image, cbmimage_dir_entry dir_entry)
	validate a specific file

int	cbmimage_validate (cbmimage_fileimage *image)
	validate the disk (and the bam)

Detailed Description

cbmimage: validate disk

Enumerations
