cbmimage API and their definitions More...

#include <stddef.h>
#include <stdint.h>

Include dependency graph for cbmimage.h:

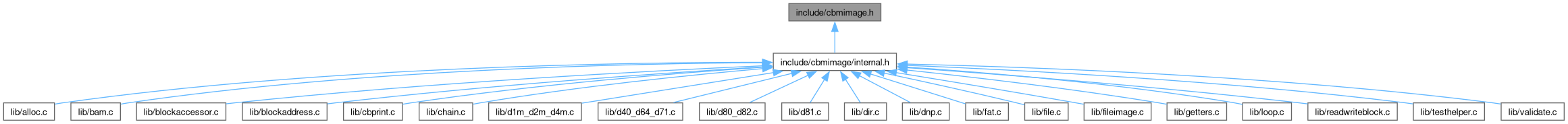

This graph shows which files directly or indirectly include this file:

Classes
struct	cbmimage_track_sector_s
	Address on floppy: Track/Sector variant. More...

struct	cbmimage_blockaddress_s
	Address on drive. More...

struct	cbmimage_dir_header_name_s
	The name of a directory header or directory entry. More...

struct	cbmimage_dir_header_s
	A directory header. More...

struct	cbmimage_dir_entry_s
	A directory entry. More...

struct	cbmimage_fileimage_s
	Type that describes a CBM disk image on which to operate. More...

struct	cbmimage_loop_s
	cbmimage loop detector struct More...

struct	cbmimage_blockaccessor_s
	cbmimage block accessor data structure More...

struct	cbmimage_fat_entry_s
	cbmimage One entry of the FAT structure More...

struct	cbmimage_fat_s
	cbmimage FAT structure More...

struct	cbmimage_chain_s
	type to describe a chain that is followed More...

struct	cbmimage_file_s
	file handling data More...

Macros
#define	CBMIMAGE_TS_INIT(_track, _sector)
	initializer for a cbmimage_track_sector

#define	CBMIMAGE_TS_SET(_ts, _track, _sector)
	set a cbmimage_track_sector

#define	CBMIMAGE_TS_CLEAR(_ts)
	clear a cbmimage_track_sector

#define	CBMIMAGE_BLOCK_INIT(_track, _sector, _lba)
	initializer for a cbmimage_blockaddress

#define	CBMIMAGE_BLOCK_INIT_FROM_TS(_track, _sector)
	initializer for a cbmimage_blockaddress

#define	CBMIMAGE_BLOCK_INIT_FROM_LBA(_lba)
	initializer for a cbmimage_blockaddress

#define	CBMIMAGE_BLOCK_SET_FROM_TS(_image, _block, _track, _sector)
	initializer for a cbmimage_blockaddress

#define	CBMIMAGE_BLOCK_SET_FROM_LBA(_image, _block, _lba)
	initializer for a cbmimage_blockaddress

Typedefs
typedef enum cbmimage_BAM_state_e	cbmimage_BAM_state
	state of the BAM

typedef struct cbmimage_track_sector_s	cbmimage_track_sector
	Address on floppy: Track/Sector variant.

typedef uint16_t	cbmimage_lba
	Address on floppy: LBA variant.

typedef struct cbmimage_blockaddress_s	cbmimage_blockaddress
	Address on drive.

typedef enum cbmimage_dir_type_e	cbmimage_dir_type
	The type of a directory entry cbmimage_dir_entry_s.

typedef enum cbmimage_geos_filetype_e	cbmimage_geos_filetype
	The GEOS type of a directory entry cbmimage_dir_entry_s.

typedef struct cbmimage_dir_header_name_s	cbmimage_dir_header_name
	The name of a directory header or directory entry.

typedef struct cbmimage_dir_header_s	cbmimage_dir_header
	A directory header.

typedef struct cbmimage_dir_entry_s	cbmimage_dir_entry
	A directory entry.

typedef enum cbmimage_imagetype_e	cbmimage_imagetype
	The type of the libcbmimage image.

typedef struct cbmimage_fileimage_s	cbmimage_fileimage
	Type that describes a CBM disk image on which to operate.

typedef struct cbmimage_loop_s	cbmimage_loop
	cbmimage loop detector struct

typedef struct cbmimage_blockaccessor_s	cbmimage_blockaccessor
	cbmimage block accessor data structure

typedef struct cbmimage_fat_entry_s	cbmimage_fat_entry
	cbmimage One entry of the FAT structure

typedef struct cbmimage_fat_s	cbmimage_fat
	cbmimage FAT structure

typedef struct cbmimage_chain_s	cbmimage_chain
	type to describe a chain that is followed

typedef struct cbmimage_file_s	cbmimage_file
	file handling data

typedef void	cbmimage_print_function_type(const char *text)
	Type for a print() style callback.

Enumerations
enum	cbmimage_BAM_state_e { BAM_UNKNOWN , BAM_REALLY_FREE , BAM_FREE , BAM_USED , BAM_DOES_NOT_EXIST }
	state of the BAM More...

enum	cbmimage_dir_type_e { DIR_TYPE_DEL = 0 , DIR_TYPE_SEQ = 1 , DIR_TYPE_PRG = 2 , DIR_TYPE_USR = 3 , DIR_TYPE_REL = 4 , DIR_TYPE_PART1581 = 5 , DIR_TYPE_CMD_NATIVE = 6 , DIR_TYPE_PART_OFFSET = 0x100 , DIR_TYPE_PART_NO = DIR_TYPE_PART_OFFSET , DIR_TYPE_PART_CMD_NATIVE = DIR_TYPE_PART_OFFSET + 0x01 , DIR_TYPE_PART_D64 = DIR_TYPE_PART_OFFSET + 0x02 , DIR_TYPE_PART_D71 = DIR_TYPE_PART_OFFSET + 0x03 , DIR_TYPE_PART_D81 = DIR_TYPE_PART_OFFSET + 0x04 , DIR_TYPE_PART_SYSTEM = DIR_TYPE_PART_OFFSET + 0xFF }
	The type of a directory entry cbmimage_dir_entry_s. More...

enum	cbmimage_geos_filetype_e { GEOS_FILETYPE_NON_GEOS = 0x00 , GEOS_FILETYPE_BASIC = 0x01 , GEOS_FILETYPE_ASSEMBLER = 0x02 , GEOS_FILETYPE_DATA_FILE = 0x03 , GEOS_FILETYPE_SYSTEM_FILE = 0x04 , GEOS_FILETYPE_DESK_ACCESSORY = 0x05 , GEOS_FILETYPE_APPLICATION = 0x06 , GEOS_FILETYPE_APPLICATION_DATA = 0x07 , GEOS_FILETYPE_FONT_FILE = 0x08 , GEOS_FILETYPE_PRINTER_DRIVER = 0x09 , GEOS_FILETYPE_INPUT_DRIVER = 0x0A , GEOS_FILETYPE_DISK_DRIVER = 0x0B , GEOS_FILETYPE_SYSTEM_BOOT_FILE = 0x0C , GEOS_FILETYPE_TEMPORARY = 0x0D , GEOS_FILETYPE_AUTO_EXECUTE_FILE = 0x0E }
	The GEOS type of a directory entry cbmimage_dir_entry_s. More...

enum	cbmimage_imagetype_e { TYPE_UNKNOWN , TYPE_D40 , TYPE_D64 , TYPE_D64_40TRACK , TYPE_D64_40TRACK_SPEEDDOS , TYPE_D64_40TRACK_DOLPHIN , TYPE_D64_40TRACK_PROLOGIC , TYPE_D64_42TRACK , TYPE_D71 , TYPE_D81 , TYPE_D80 , TYPE_D82 , TYPE_CMD_D1M , TYPE_CMD_D2M , TYPE_CMD_D4M , TYPE_CMD_NATIVE , TYPE_LAST }
	The type of the libcbmimage image. More...

Functions
cbmimage_imagetype	cbmimage_image_guesstype (const uint8_t buffer, size_t size, int extra_errormap)

cbmimage_imagetype	cbmimage_image_file_guesstype (const char *filename)

cbmimage_fileimage *	cbmimage_image_open (const uint8_t *buffer, size_t size, cbmimage_imagetype)
	open an in-memory CBM image

cbmimage_fileimage *	cbmimage_image_openfile (const char *filename, cbmimage_imagetype)
	open a CBM image from a file

void	cbmimage_image_readfile (cbmimage_fileimage , const char filename)
	read a file and store it in a given CBM image

void	cbmimage_image_writefile (cbmimage_fileimage , const char filename)
	write the CBM image to a file

const void *	cbmimage_image_get_raw (cbmimage_fileimage *)
	get a pointer to the raw image contents

size_t	cbmimage_image_get_raw_size (cbmimage_fileimage *)
	get the size of the raw image contents

void	cbmimage_image_close (cbmimage_fileimage *)
	close a CBM image

void	cbmimage_image_fat_dump (cbmimage_fileimage *, int linear)
	dump a FAT structure of the image

const char *	cbmimage_get_imagetype_name (cbmimage_fileimage *)
	get the image type as string

const char *	cbmimage_get_filename (cbmimage_fileimage *)
	get the file name of the image

uint16_t	cbmimage_get_max_track (cbmimage_fileimage *)
	get the maximum tracks of the image

uint16_t	cbmimage_get_max_sectors (cbmimage_fileimage *)
	get the maximum sectors on a track of the image

uint16_t	cbmimage_get_max_lba (cbmimage_fileimage *)
	get the maximum LBA of the image

uint16_t	cbmimage_get_bytes_in_block (cbmimage_fileimage *)
	get the number of blocks in a block of the image

uint16_t	cbmimage_get_sectors_in_track (cbmimage_fileimage *, uint16_t track)
	get the number of sectors on a specific track of the image

int	cbmimage_blockaddress_ts_exists (cbmimage_fileimage *, uint8_t track, uint8_t sector)
	check if T/S is valid

int	cbmimage_blockaddress_lba_exists (cbmimage_fileimage *, uint16_t lba)
	check if LBA is valid

int	cbmimage_blockaddress_init_from_ts (cbmimage_fileimage , cbmimage_blockaddress block)
	initialize a block address from its T/S specification

int	cbmimage_blockaddress_init_from_lba (cbmimage_fileimage , cbmimage_blockaddress block)
	initialize a block address from its T/S specification

int	cbmimage_blockaddress_init_from_ts_value (cbmimage_fileimage , cbmimage_blockaddress block, uint8_t track, uint8_t sector)
	initialize a block address when T/S are given

int	cbmimage_blockaddress_init_from_lba_value (cbmimage_fileimage , cbmimage_blockaddress block, uint16_t lba)
	initialize a block address when LBA is given

int	cbmimage_blockaddress_advance (cbmimage_fileimage , cbmimage_blockaddress block)
	advance a block address, going to the next block

int	cbmimage_blockaddress_advance_in_track (cbmimage_fileimage , cbmimage_blockaddress block)
	advance a block address, going to the next block in the same track

int	cbmimage_blockaddress_add (cbmimage_fileimage , cbmimage_blockaddress blockresult, cbmimage_blockaddress block_adder)
	add two block address together

int	cbmimage_read_block (cbmimage_fileimage , cbmimage_blockaddress block, void buffer, size_t buffersize)
	read a block from the image and copy it into the provided buffer

int	cbmimage_write_block (cbmimage_fileimage , cbmimage_blockaddress block, void buffer, size_t buffersize)
	write a block to the image by copying it from the provided buffer

int	cbmimage_read_next_block (cbmimage_fileimage , cbmimage_blockaddress block, void *buffer, size_t buffersize)
	read the next block from the image and copy it into the provided buffer

cbmimage_blockaccessor *	cbmimage_blockaccessor_create (cbmimage_fileimage *image, cbmimage_blockaddress block)
	create a block accessor for a specific block

cbmimage_blockaccessor *	cbmimage_blockaccessor_create_from_ts (cbmimage_fileimage *image, uint8_t track, uint8_t sector)
	create a block accessor for a specific T/S

cbmimage_blockaccessor *	cbmimage_blockaccessor_create_from_lba (cbmimage_fileimage *image, uint16_t lba)
	create a block accessor for a specific LBA

void	cbmimage_blockaccessor_close (cbmimage_blockaccessor *accessor)
	close a block accessor, freeing its resources

int	cbmimage_blockaccessor_set_to (cbmimage_blockaccessor *accessor, cbmimage_blockaddress block)
	set a block accessor for a specific block

int	cbmimage_blockaccessor_set_to_ts (cbmimage_blockaccessor *accessor, uint8_t track, uint8_t sector)
	set a block accessor for a specific T/S

int	cbmimage_blockaccessor_set_to_lba (cbmimage_blockaccessor *accessor, uint16_t lba)
	set a block accessor for a specific LBA

int	cbmimage_blockaccessor_advance (cbmimage_blockaccessor *accessor)
	advance a block accessor to the next block

int	cbmimage_blockaccessor_follow (cbmimage_blockaccessor *accessor)
	follow the block chain of a block accessor to the next block

int	cbmimage_blockaccessor_get_next_block (cbmimage_blockaccessor accessor, cbmimage_blockaddress block_next)
	get the next block of this accessor if we follow the chain

int	cbmimage_bam_check_consistency (cbmimage_fileimage *)
	check the consistency of a BAM

int	cbmimage_get_blocks_free (cbmimage_fileimage *)
	get the count of blocks free

cbmimage_BAM_state	cbmimage_bam_get (cbmimage_fileimage *, cbmimage_blockaddress block)
	get the unused/used state of a block in the BAM

int	cbmimage_bam_get_free_on_track (cbmimage_fileimage *image, uint8_t track)
	get the blocks free on a specific track

cbmimage_dir_header *	cbmimage_dir_get_header (cbmimage_fileimage *)
	get the header entry

void	cbmimage_dir_get_header_close (cbmimage_dir_header *)
	free the resources from a cbmimage_dir_get_header()

cbmimage_dir_entry *	cbmimage_dir_get_first (cbmimage_fileimage *)
	get the first (non-empty) directory entry

int	cbmimage_dir_get_next (cbmimage_dir_entry *)
	get the next (non-empty) directory entry

int	cbmimage_dir_get_is_valid (cbmimage_dir_entry *)
	get the next (non-empty) directory entry

char *	cbmimage_dir_extract_name (cbmimage_dir_header_name , char name, size_t len)
	extract the name of a directory entry as a C string

int	cbmimage_dir_is_deleted (cbmimage_dir_entry *)
	check if the directory entry points to a deleted file

int	cbmimage_dir_chdir (cbmimage_dir_entry *)
	perform a chdir to a partition marked by a directory entry

int	cbmimage_dir_chdir_close (cbmimage_fileimage *)
	"close a chdir"; that is, go back to the parent directory

void	cbmimage_dir_get_close (cbmimage_dir_entry *)
	free the resources from a cbmimage_dir_get_first()

cbmimage_loop *	cbmimage_loop_create (cbmimage_fileimage *)
	create a loop detector data structure

void	cbmimage_loop_close (cbmimage_loop *)
	free a loop detector data structure

int	cbmimage_loop_mark (cbmimage_loop *, cbmimage_blockaddress block)
	mark a block as used/visited

int	cbmimage_loop_check (cbmimage_loop *, cbmimage_blockaddress block)
	check if a block is marked as used/visited

int	cbmimage_validate (cbmimage_fileimage *)
	validate the disk (and the bam)

cbmimage_file *	cbmimage_file_open_by_name (const char *filename)
	open a file on the cbmimage where the name is known

cbmimage_file *	cbmimage_file_open_by_dir_entry (cbmimage_dir_entry *dir_entry)
	open a file on the cbmimage that has already een enumerated

void	cbmimage_file_close (cbmimage_file *file)
	close a file

int	cbmimage_file_read_next_block (cbmimage_file file, uint8_t buffer, size_t buffer_size)
	read a block from the file

int	cbmimage_print_set_function (cbmimage_print_function_type print_function)
	set the callback for output from the library

cbmimage_fat *	cbmimage_fat_create (cbmimage_fileimage *image)
	create a FAT structure

int	cbmimage_fat_set (cbmimage_fat *, cbmimage_blockaddress block, cbmimage_blockaddress target)
	set a block in the FAT to a target in the FAT

int	cbmimage_fat_clear (cbmimage_fat *, cbmimage_blockaddress block)
	set a block in the FAT to unused

cbmimage_blockaddress	cbmimage_fat_get (cbmimage_fat *, cbmimage_blockaddress block)
	get the target of a block in the FAT

int	cbmimage_fat_is_used (cbmimage_fat *, cbmimage_blockaddress block)
	check if a block in the FAT is marked as used

void	cbmimage_fat_dump (cbmimage_fat *, int linear)
	dump a FAT structure

void	cbmimage_fat_close (cbmimage_fat *)
	close a FAT structure

cbmimage_chain *	cbmimage_chain_start (cbmimage_fileimage *, cbmimage_blockaddress)
	start the chain processing for a file chain

void	cbmimage_chain_close (cbmimage_chain *chain)
	close the chain structure

int	cbmimage_chain_advance (cbmimage_chain *chain)
	advance to the next block of this chain

int	cbmimage_chain_last_result (cbmimage_chain *chain)
	check if this chain has been processed competely

int	cbmimage_chain_is_done (cbmimage_chain *chain)
	check if this chain has been processed competely

int	cbmimage_chain_is_loop (cbmimage_chain *chain)
	check if this chain has fallen into a loop

cbmimage_blockaddress	cbmimage_chain_get_current (cbmimage_chain *chain)
	get the address of the current block in this chain

cbmimage_blockaddress	cbmimage_chain_get_next (cbmimage_chain *chain)
	get the address of the next block in this chain

uint8_t *	cbmimage_chain_get_data (cbmimage_chain *chain)
	get a pointer to the data of the current block in this chain

Variables
const cbmimage_blockaddress	cbmimage_block_unused
	Definition of an empty cbmimage_blockaddress.

Detailed Description

cbmimage API and their definitions

Author: Spiro Trikaliotis

Macro Definition Documentation

◆ CBMIMAGE_BLOCK_INIT

#define CBMIMAGE_BLOCK_INIT	(	_track,
		_sector,
		_lba )

Value:

{ .lba = (_lba), .ts = CBMIMAGE_TS_INIT((_track), (_sector)) }

CBMIMAGE_TS_INIT

#define CBMIMAGE_TS_INIT(_track, _sector)

initializer for a cbmimage_track_sector

Definition cbmimage.h:52

initializer for a cbmimage_blockaddress

This macro can be used like
cbmimage_blockaddress var = CBMIMAGE_BLOCK_INIT(track, sector, lba)
in order to initialize the var.

Parameters

[in]	_track	the track to use as initializer
[in]	_sector	the sector to use as initializer
[in]	_lba	the LBA to use as initializer

◆ CBMIMAGE_BLOCK_INIT_FROM_LBA

#define CBMIMAGE_BLOCK_INIT_FROM_LBA ( _lba )

Value:

CBMIMAGE_INIT_BLOCK(0, 0, (_lba))

initializer for a cbmimage_blockaddress

This macro can be used like
cbmimage_blockaddress var = CBMIMAGE_BLOCK_INIT_FROM_LBA(lba)
in order to initialize the var.

Parameters

[in] _lba the LBA to use as initializer

Remarks: The track and sector part is set to 0, marking that it is still not initialized.

◆ CBMIMAGE_BLOCK_INIT_FROM_TS

#define CBMIMAGE_BLOCK_INIT_FROM_TS	(		_track,
			_sector )

Value:

CBMIMAGE_BLOCK_INIT((_track), (_sector), 0)

CBMIMAGE_BLOCK_INIT

#define CBMIMAGE_BLOCK_INIT(_track, _sector, _lba)

initializer for a cbmimage_blockaddress

Definition cbmimage.h:127

initializer for a cbmimage_blockaddress

This macro can be used like
cbmimage_blockaddress var = CBMIMAGE_BLOCK_INIT_FROM_TS(track, sector)
in order to initialize the var.

Parameters

[in]	_track	the track to use as initializer
[in]	_sector	the sector to use as initializer

Remarks: The LBA part is set to 0, marking that it is still not initialized.

◆ CBMIMAGE_BLOCK_SET_FROM_LBA

#define CBMIMAGE_BLOCK_SET_FROM_LBA	(	_image,
		_block,
		_lba )

Value:

  do { \
    (_block).lba = (_lba); \
    cbmimage_blockaddress_init_from_lba((_image), &(_block)); \
  } while (0)

initializer for a cbmimage_blockaddress

This macro can be used like
CBMIMAGE_BLOCK_SET_FROM_LBA(image, block, lba)
in order to initialize the var.

Parameters

[in]	_image	pointer to the image data
[in,out]	_block	the cbmimage_blockaddress to be modified
[in]	_lba	the LBA to use as initializer

Remarks: The track and sector values are calculated from the _lba value

◆ CBMIMAGE_BLOCK_SET_FROM_TS

#define CBMIMAGE_BLOCK_SET_FROM_TS	(	_image,
		_block,
		_track,
		_sector )

Value:

  do { \
    CBMIMAGE_TS_SET((_block).ts, (_track), (_sector)); \
    cbmimage_blockaddress_init_from_ts((_image), &(_block)); \
  } while (0)

initializer for a cbmimage_blockaddress

This macro can be used like
CBMIMAGE_BLOCK_SET_FROM_TS(image, block, track, sector)
in order to initialize the var.

Parameters

[in]	_image	pointer to the image data
[in,out]	_block	the cbmimage_blockaddress to be modified
[in]	_track	the track to use as initializer
[in]	_sector	the sector to use as initializer

Remarks: The LBA part is calculated from the _track and _sector values

◆ CBMIMAGE_TS_CLEAR

#define CBMIMAGE_TS_CLEAR ( _ts )

Value:

CBMIMAGE_TS_SET((_ts), 0, 0)

CBMIMAGE_TS_SET

#define CBMIMAGE_TS_SET(_ts, _track, _sector)

set a cbmimage_track_sector

Definition cbmimage.h:71

clear a cbmimage_track_sector

Clearing a track/sectors means to put it into an "invalid" state

This macro can be used like
CBMIMAGE_TS_CLEAR(var)
in order to initialize the var with track and sector

Parameters

[in,out] _ts The variable which is modified

◆ CBMIMAGE_TS_INIT

#define CBMIMAGE_TS_INIT	(		_track,
			_sector )

Value:

{ .track = (_track), .sector = (_sector) }

initializer for a cbmimage_track_sector

This macro can be used like
cbmimage_track_sector var = CBMIMAGE_TS_INIT(track, sector)
in order to initialize the var.

Parameters

[in]	_track	the track to use as initializer
[in]	_sector	the sector to use as initializer

◆ CBMIMAGE_TS_SET

#define CBMIMAGE_TS_SET	(	_ts,
		_track,
		_sector )

Value:

do { (_ts).track = (_track); (_ts).sector = (_sector); } while (0)

set a cbmimage_track_sector

This macro can be used like
CBMIMAGE_TS_INIT(var, track, sector)
in order to initialize the var with track and sector

Parameters

[in,out]	_ts	The variable which is modified
[in]	_track	the track to use as initializer
[in]	_sector	the sector to use as initializer

Typedef Documentation

◆ cbmimage_file

typedef struct cbmimage_file_s cbmimage_file

file handling data

The structure is used for processing a file from a file image.

Todo: Add VLIR and REL file processing and needed structures

◆ cbmimage_print_function_type

typedef void cbmimage_print_function_type(const char *text)

Type for a print() style callback.

Used with cbmimage_print_set_function()

Function Documentation

◆ cbmimage_blockaddress_lba_exists()

int cbmimage_blockaddress_lba_exists	(	cbmimage_fileimage *	image,
		uint16_t	lba )

check if LBA is valid

Parameters

[in]	image	pointer to the image data
[in]	lba	the LBA of the block to be tested for existance

Returns

0 if the block T/S is not valid
!= 0 if the block T/S is valid

Remarks

◆ cbmimage_blockaddress_ts_exists()

int cbmimage_blockaddress_ts_exists	(	cbmimage_fileimage *	image,
		uint8_t	track,
		uint8_t	sector )

check if T/S is valid

Parameters

[in]	image	pointer to the image data
[in]	track	the track of the block to be tested for existance
[in]	sector	the sector of the block to be tested for existance

Returns

0 if the block T/S is not valid
!= 0 if the block T/S is valid

Remarks

Variable Documentation

◆ cbmimage_block_unused

const cbmimage_blockaddress cbmimage_block_unused

extern

Definition of an empty cbmimage_blockaddress.

Whenever you need to use an empty or unused block address, you can use this one instead of defining it on your own.

Classes

Macros

Typedefs

Enumerations

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ CBMIMAGE_BLOCK_INIT

◆ CBMIMAGE_BLOCK_INIT_FROM_LBA

◆ CBMIMAGE_BLOCK_INIT_FROM_TS

◆ CBMIMAGE_BLOCK_SET_FROM_LBA

◆ CBMIMAGE_BLOCK_SET_FROM_TS

◆ CBMIMAGE_TS_CLEAR

◆ CBMIMAGE_TS_INIT

◆ CBMIMAGE_TS_SET

Typedef Documentation

◆ cbmimage_file

◆ cbmimage_print_function_type

Function Documentation

◆ cbmimage_blockaddress_lba_exists()

◆ cbmimage_blockaddress_ts_exists()

Variable Documentation

◆ cbmimage_block_unused
